|battery distribution board | power box |

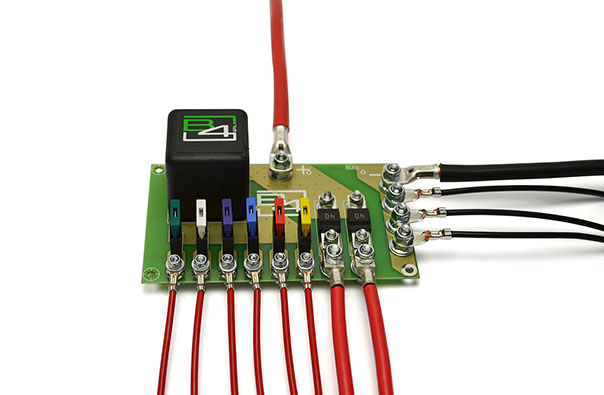

main positive connection

main negative connection

positive exits direct from battery

Positive exits driven by the switching relay

The power distribution module is  integrated with 2 lines of fuse blocks  and a bi-stable switching relay. The fixing studs easy the connection procedure. The six blade fuses work under the bi-stable switching relay activated by the key switch. The 2 midi fused are connected directly to the battery to supply continuously the vehicle electronic devices or hazardous lights.

PART NUMBERS

SD101-12 Relay 12V 200A - 120 A continuous working

SD101-24 Relay  24V 100A - 80 A  continuous working



Technical data:

Part number: SD101-12

Supply voltage: 12 Volt

Max current load continuous working : 100 AMPERE 12V

Dimension (L x W x H) mm: 150 x 90 x 70

Diam. fixing holes: 5MM



Technical data:

Part number: SD101-24

Supply voltage: 24 Volt

Max current load continuous working : 80 AMPERE 24V

Dimension (L x W x H) mm: 150 x 90 x 70

Diam. fixing holes: 5MM
